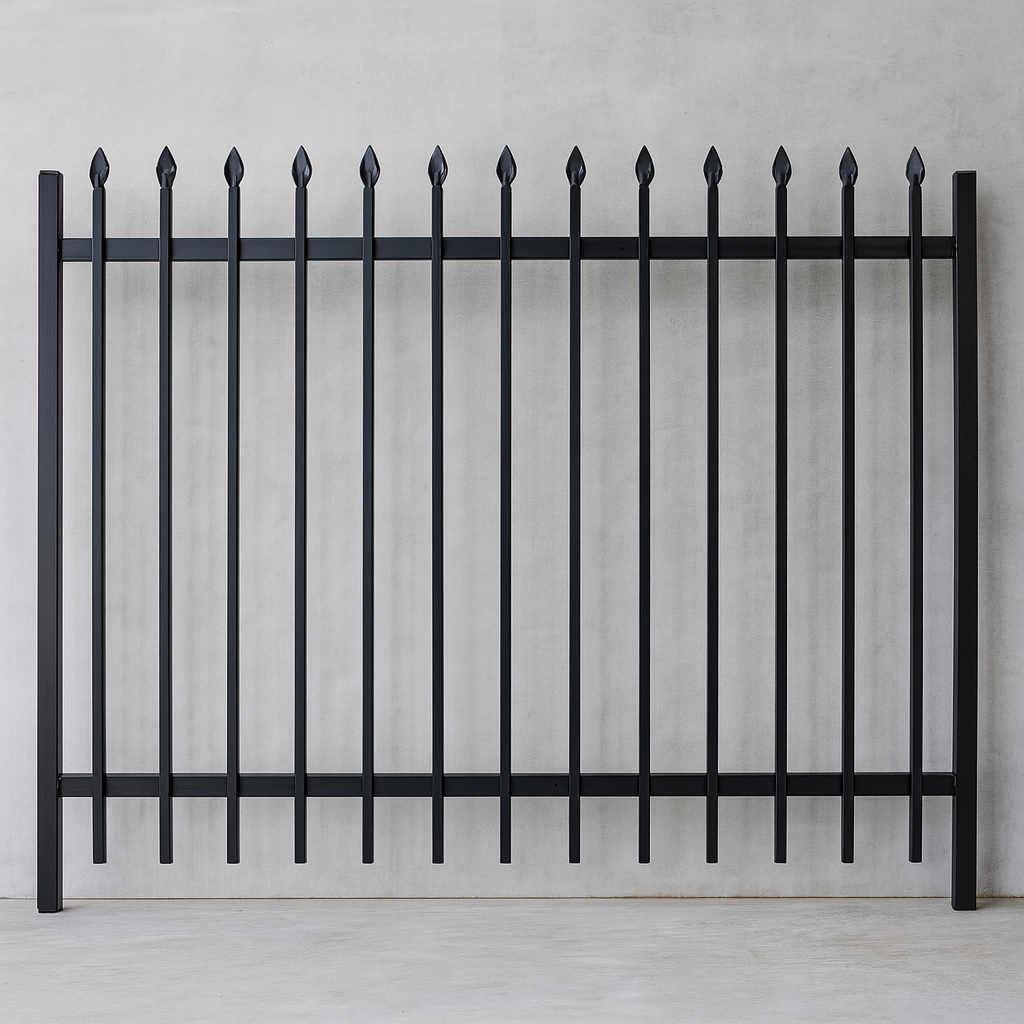

1.2x2.45m Pressed Spear Top Hercules Fence

The 1.2x2.45m Pressed Spear Top Hercules Fence panel delivers a perfect blend of refined aesthetics and rugged performance. Designed for boundary security without a fortress-like appearance, it’s suited to residential properties, schools, commercial sites, and light-industrial perimeters alike.

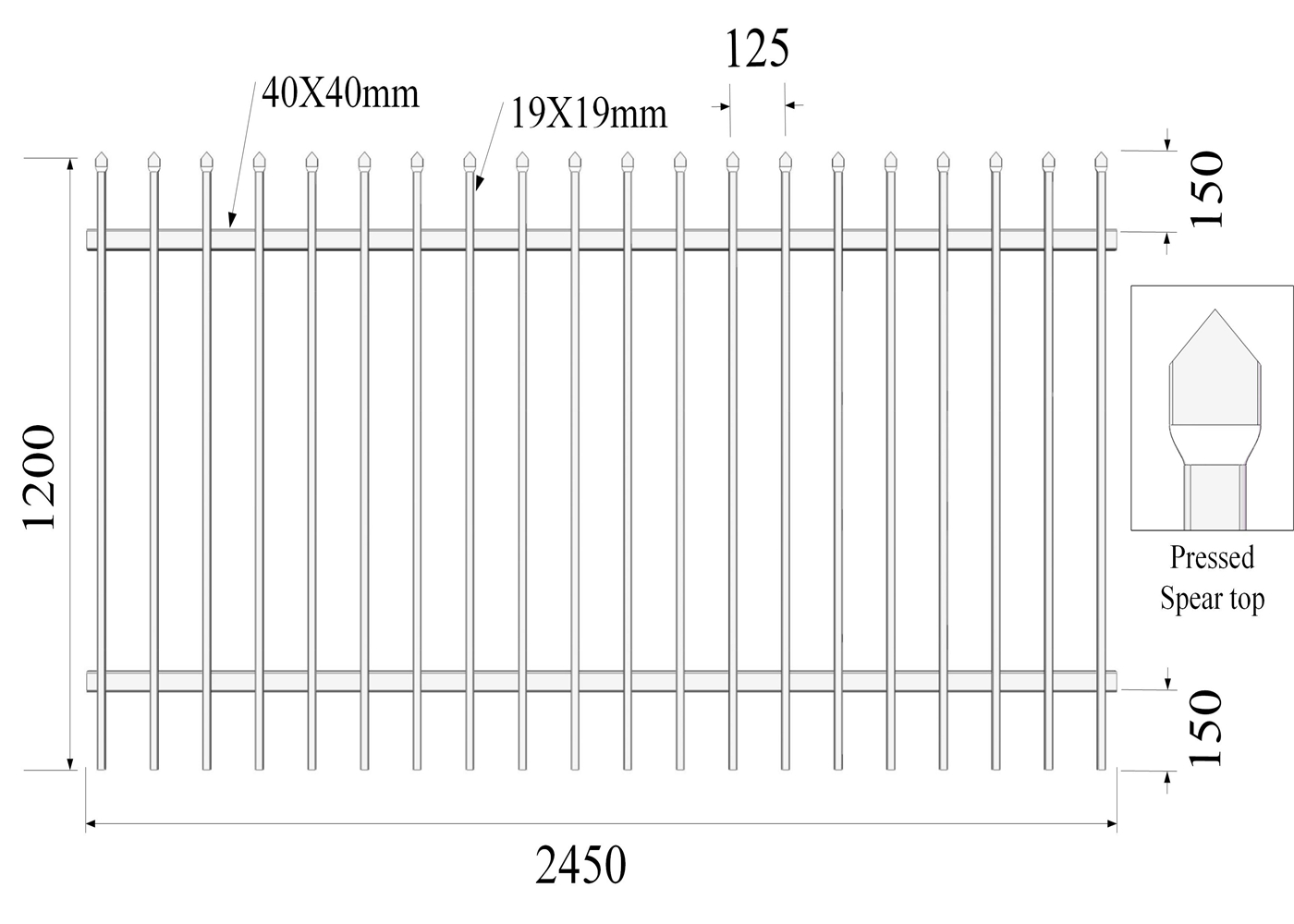

1. Product Overview 1.2x2.45m Pressed Spear Top Hercules Fence

• Panel Dimensions:

  • Visible Height: 1 200 mm

  • Width: 2 450 mm

  • Burial Allowance: 150 mm for concrete footing

• Vertical Pickets:

  • Section: 19 × 19 mm square steel tube

  • Centre‑to‑centre spacing: 125 mm

  • Top detail: Integral pressed‑spear finial (no separate welds)

• 1.2x2.45m Pressed Spear Top Hercules Fence Horizontal Rails:

  • Two 40 × 40 mm square‑tube rails

  • Positioned 150 mm from the top and bottom of the visible panel

• Finish System:

  1. Hot‑dip galvanizing (≥ 80 μm per EN ISO 1461)

  2. Polyester powder‑coat (≥ 60 μm) in standard matte black (custom RAL options available)

2. Key Features & Benefits

3. Technical Specifications 1.2x2.45m Pressed Spear Top Hercules Fence

• Material: S235 hot‑rolled mild steel

• Wall Thickness: Rails 2.0 mm; Pickets 1.5 mm

• Panel Weight: Approx. 43 kg per panel

• Maximum Wind Load: 2 kPa (equivalent to ~210 km/h gusts)

• Recommended Post Centres: 2.45 m max

• Fasteners: 304‑grade stainless‑steel clips and bolts

• Standards Compliance: EN ISO 1461, EN 1090 CE marking

4. Installation Guide

1. Footing Preparation:

   • Excavate 200 × 200 mm holes to a depth of 400 mm (150 mm bury + 250 mm concrete).

2. Setting Posts:

   • Use 60 × 60 mm square posts (2.5 mm wall thickness).

   • Plumb each post in concrete; allow curing.

3. Mounting Panels:

   • Slide the 1.2x2.45m Pressed Spear Top Hercules Fence panel between posts.

   • Align rails at 150 mm offsets and secure with stainless‑steel brackets (2–4 per rail).

4. Final Touches:

   • Backfill around posts; compact soil.

   • Touch‑up any minor coating damage with matching liquid‑coat paint.

5. Typical Applications 1.2x2.45m Pressed Spear Top Hercules Fence

• Residential Properties: Attractive boundary fences that maintain visibility.

• Educational Campuses: Safe perimeters with open sightlines for supervision.

• Commercial & Office Parks: Professional, low‑maintenance enclosure.

• Light Industrial Sites: Effective deterrent when combined with CCTV or barbed wire.

• Public Spaces & Parks: Durable, welcoming barriers that stand up to heavy use.

6. Customization Options

• Panel Heights: 1.0 m–2.5 m visible

• Widths: 1.0 m–4.0 m panels

• Colours: Any RAL Classic or metallic finish

• Top Styles: Ball‑top, flat cap, custom logos, or bespoke spear designs

• Accessories: Matching gates (swing/sliding), handrails, post‑cap lighting

7. Maintenance Recommendations

• Annual Inspection: Check fasteners, clips, and surface coating.

• Cleaning: Rinse with mild detergent; avoid abrasives.

• Touch‑Up: Apply powder‑coat touch‑up paint for scratches.

• Lubrication: Grease gate hinges semi‑annually; tighten bolts as needed.

1.2×2.45m Pressed Spear Top Hercules Fence

A 1.2 m tall by 2.45 m wide Pressed Spear Top Hercules fence panel combines refined spear‑point styling with industrial‑grade strength. Whether enclosing a family home, securing a schoolyard, or defining a corporate campus boundary, its modular design delivers long‑term durability, low maintenance, and a sleek sight‑through profile.

Product Overview

• Panel Dimensions: Visible Height 1 200 mm × Width 2 450 mm (with 150 mm burial allowance)

• Vertical Pickets: 19 × 19 mm square‑steel tubes, 125 mm on‑centre, each formed with an integral pressed‑spear finial

• Horizontal Rails: Two 40 × 40 mm square‑tube rails, positioned 150 mm from top and bottom of visible panel

• Finish System: Hot‑dip galvanizing ≥ 80 μm per EN ISO 1461 + polyester powder‑coat ≥ 60 μm (standard matte black; custom RAL options)

Key Benefits

• High‑Security Deterrent: Spear finials formed from the picket itself, no weld seams to fail; 125 mm spacing deters climbing without feeling fortress‑like

• Slim, Sight‑Through Profile: 19 × 19 mm pickets preserve clear lines of sight for surveillance or aesthetics

• Exceptional Durability: S235 mild‑steel construction with dual‑stage corrosion protection for 20+ years of service

• Low Maintenance: Galvanize + powder‑coat virtually eliminates repainting—touch‑ups only as needed

• Modular & Fast Installation: Bolt‑up panels between posts, no on‑site welding; panels easily swapped or extended

• Customizable: Heights 1.0–2.5 m, widths 1.0–4.0 m; choice of spear‑top, ball‑top, flat‑cap, or bespoke designs; any RAL colour available

Technical Specifications 1.2x2.45m Pressed Spear Top Hercules Fence

• Material: S235 hot‑rolled mild steel

• Wall Thickness: Rails 2.0 mm; Pickets 1.5 mm

• Panel Weight: Approx. 43 kg

• Max Wind Load: 2 kPa (≈ 210 km/h gusts)

• Recommended Post Centres: 2.45 m

• Fasteners: 304‑grade stainless‑steel clips & bolts

• Standards: EN ISO 1461, EN 1090 CE marked

Installation at a Glance

1. Excavate: 200 × 200 mm holes, 400 mm deep (150 mm panel burial + 250 mm concrete footing)

2. Set Posts: 60 × 60 mm square posts (2.5 mm wall); plumb and align in concrete

3. Mount Panels: Slide each 1.2×2.45m panel between posts; align rails at 150 mm offsets; secure with stainless clips (2–4 per rail)

4. Finish: Back‑fill around posts; compact soil; touch‑up any coating damage with matching liquid‑coat paint

Typical Applications

• Residential: Stylish boundary fencing with minimal obstruction

• Schools & Playgrounds: Open‑view safety barrier

• Commercial & Office Campuses: Professional perimeter treatment

• Light Industrial: Effective deterrent compatible with CCTV or barbed wire

• Parks & Public Spaces: Durable, approachable enclosure

Maintenance Recommendations 1.2x2.45m Pressed Spear Top Hercules Fence

• Annual Inspection: Check fasteners, clips, and coating integrity

• Cleaning: Rinse with mild detergent; avoid aggressive cleaners

• Touch‑Up: Apply powder‑coat touch‑up paint on scratches

• Lubrication: Grease gate hinges and moving parts semi‑annually

Bottom Line

The 1.2×2.45m Pressed Spear Top Hercules Fence panel offers a no‑nonsense solution: classic spear‑top style, engineered strength, and decades of low‑maintenance security—all delivered through a modular, customizable system that installs in hours, not days.

Conclusion

The 1.2x2.45m Pressed Spear Top Hercules Fence panel offers a sleek, sight‑through barrier with decades of protection and minimal maintenance. Its integral spear tips, robust steel sections, and dual‑stage corrosion shielding make it an uncompromising choice for security-conscious projects that demand both style and strength.
